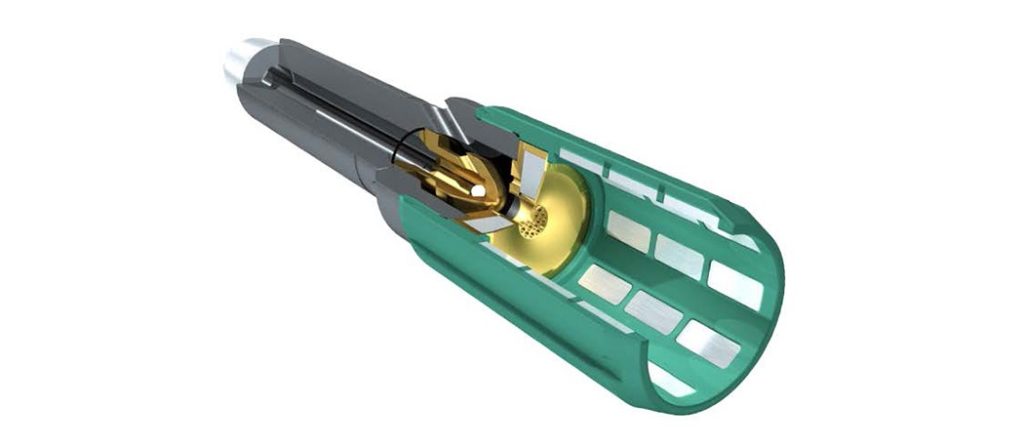

The MAGVac Fishing Magnet is a robust magnetic junk retrieval tool with reverse circulating technology that sucks junk into a magnetic overshot for safe retrieval to surface.

Features

• Powerful rare earth magnetic arrangement
• Available in various OD sizes
• Integral venturi sucks debris into the magnet overshot

Benefits

Cost savings

• Novel magnetic overshot increases the changes of successful junk catching to reduce trips

Increases Well Productivity

• Allows effective capture of metallic debris that can hinder the operation of completion equipment

Integrity

• Standard pin up connections compatible with standard bit subs with no need for additional cross overs

Reducing Non-Productive Time

• Simple system that can be RIH on existing drillpipe to capture metallic debris that could hinder operation of completion equipment
• Reduces premature failure of completion equipment by debris which can interfere with valves, electronics and other hardware

Applications

• Retrieval of dropped objects, completions clamps or metallic debris
• Workovers to remove milled packers and plug debris

Operational

• The MAGVac Fishing Magnet is RIH on the end of conventional drillpipe to the area of interest with other ArmRdillo™ Wellbore Clean-Up tools above
• Once spaced out above the area of interest circulation is established to create the Venturi effect. The operator then slacks off slowly while pumping
• Metallic debris is sucked into the magnet chamber and retained within the tool
• Once the area has been cleaned, a circulation sub can be opened to allow high rate circulation above the tool, if desired, to perform a displacement or chemical cleanup
• The MAGVac Fishing Magnet can be quickly emptied at surface to inspect contents and can be redeployed quickly if necessary
